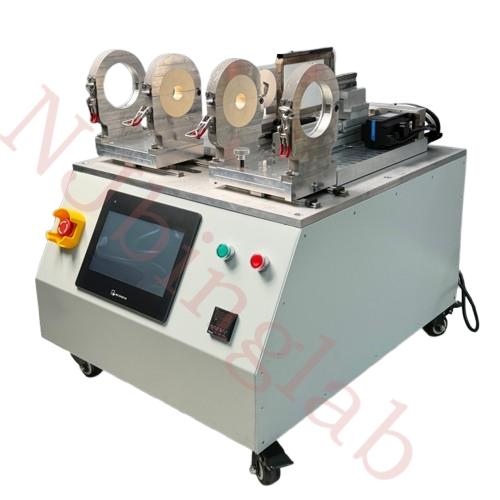

PWM Hot-Melt Welding Machine

Views: 0 Author: Site Editor Publish Time: 2026-03-19 Origin: Site

Equipment Introduction

This machine is a precision hot-melt butt welding equipment specifically designed for connectinghigh-purity, corrosion-resistant PFA (perfluoroalkoxy alkane) piping systems. It employs PLCprogram control and integrates high-precision temperature control, servo drive technology, and ahuman-machine interaction interface, enabling full automation of the welding process. This ensures high-strength welds with no precipitates, fully meeting the stringent requirements forultra-high-purity fluid delivery systems in industries such as semiconductors, photovoltaics,biopharmaceuticals, and specialty chemicals.

Equipment Features

High-precision control : Utilizing PID closed-loopemperature control to maintain heating temperature stability within +-1°C.

Fully automatic welding : Equipped with built-in welding programs for various pipe diameters,t automatically completes the entire process of cuting, heating, but joining, and cooling with a single button press.

User-friendly operation : Equipped with a color touch screen (HMI), it allowsfor intuitive setting, storage, and retieval of welding parameters, as well as real-time/display of welding data.

High-guality weld : With a uniform and stable thermal field. it achievesmolecular-level diffusion bonding, ensuring weld strength that is 290% of the base material's strength

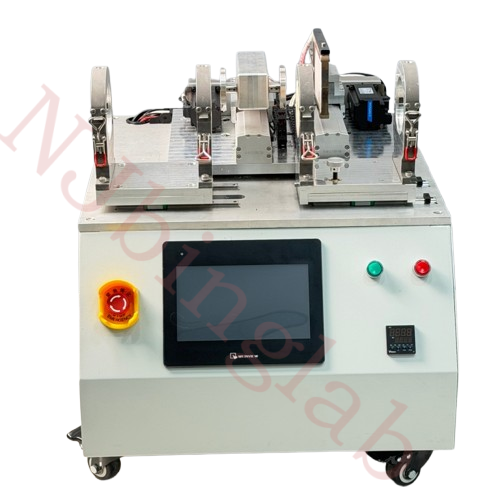

Structural Description

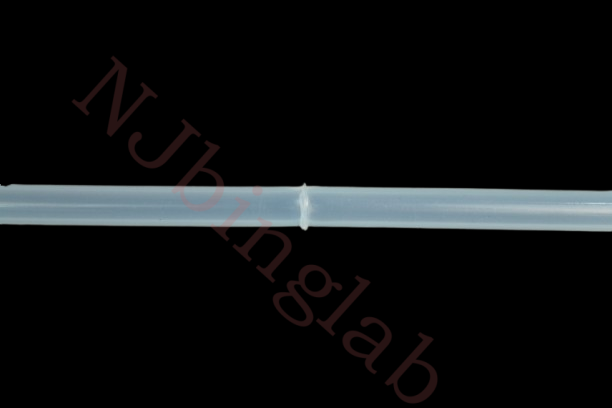

Welding Examples

Hot-Melt Welding Machine Technical Specifications

Model	PWM
Applicable Pipe Materials	PFA、 FEP、 PVDF、PP、 PEEK
Applicable Pipe Diameter Range	∮6.35mm-∮63mm (outer diameter)
Material	Aluminum Alloy + Stainless Steel
Heating Method	Far-Infrared Radiation Heating
Heating Plate Temperature Range	Room temperature -600℃
Temperature Control Accuracy	+-1℃
Power Supply	220V 50/60Hz±10%
Drive Type	Servo Motor + Ball Screw
Control System	Industrial-Grade PLC + Color Touchscreen

Program Storage	Up to 100 Program Storage Slots
Heating Rate	40°C/minute
Temperature Control Method	PID Control
Equipment Dimensions	740mm x670mm x670mm (LxWxH)
Total Machine Weight	70KG

From today on, let the PWM Welding Machine redefine the standards of high-purity piping system welding. Whether dealing with complex process requirements or stringent cleanliness criteria, the PWM responds with ease through intelligent, one-button operation. Welcome to visit our official website or contact our sales team for more product details and customized solutions. Join us in shaping the future of welding technology.
