NJbinglab PFA Welding & Custom Assembly Technology
Equipment Description

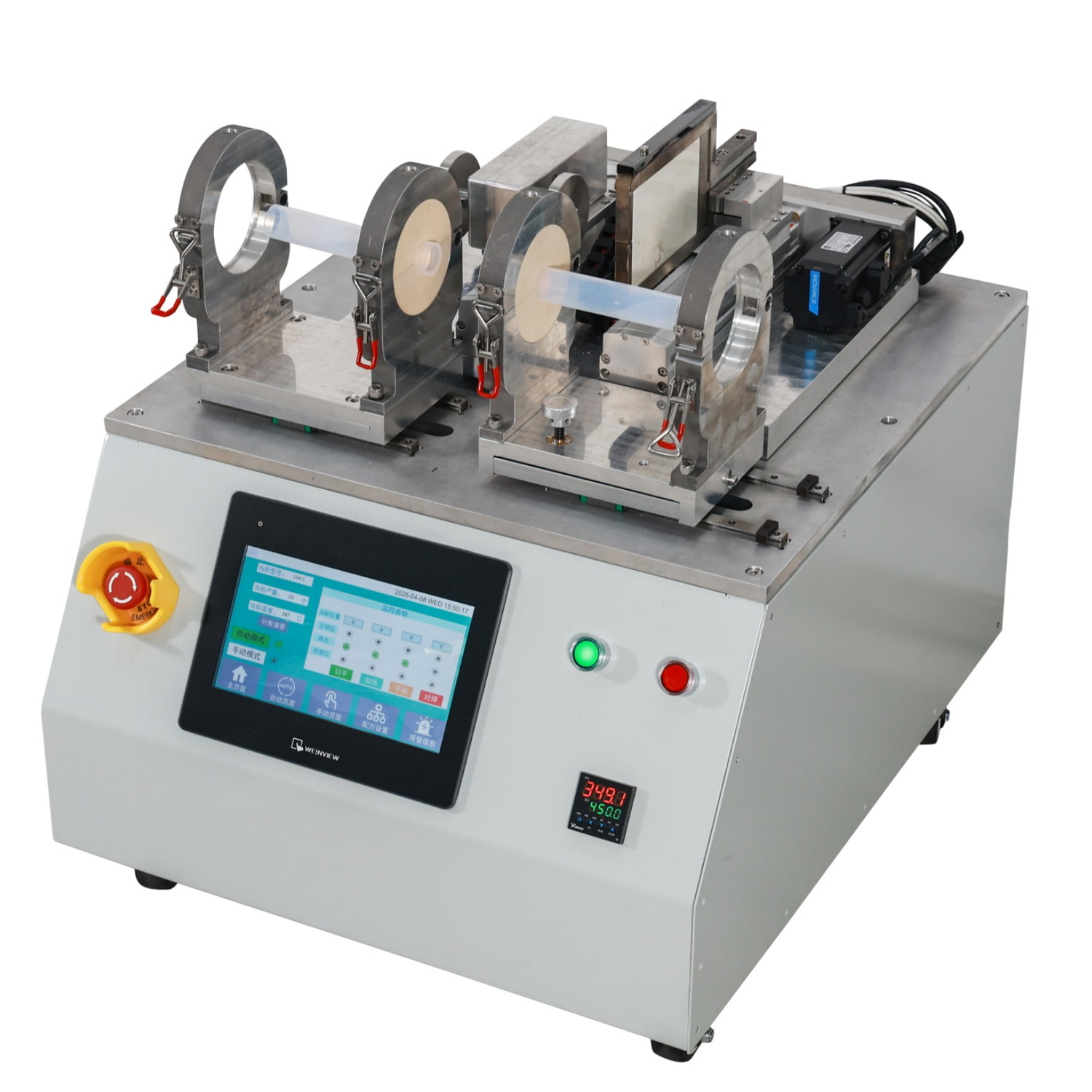

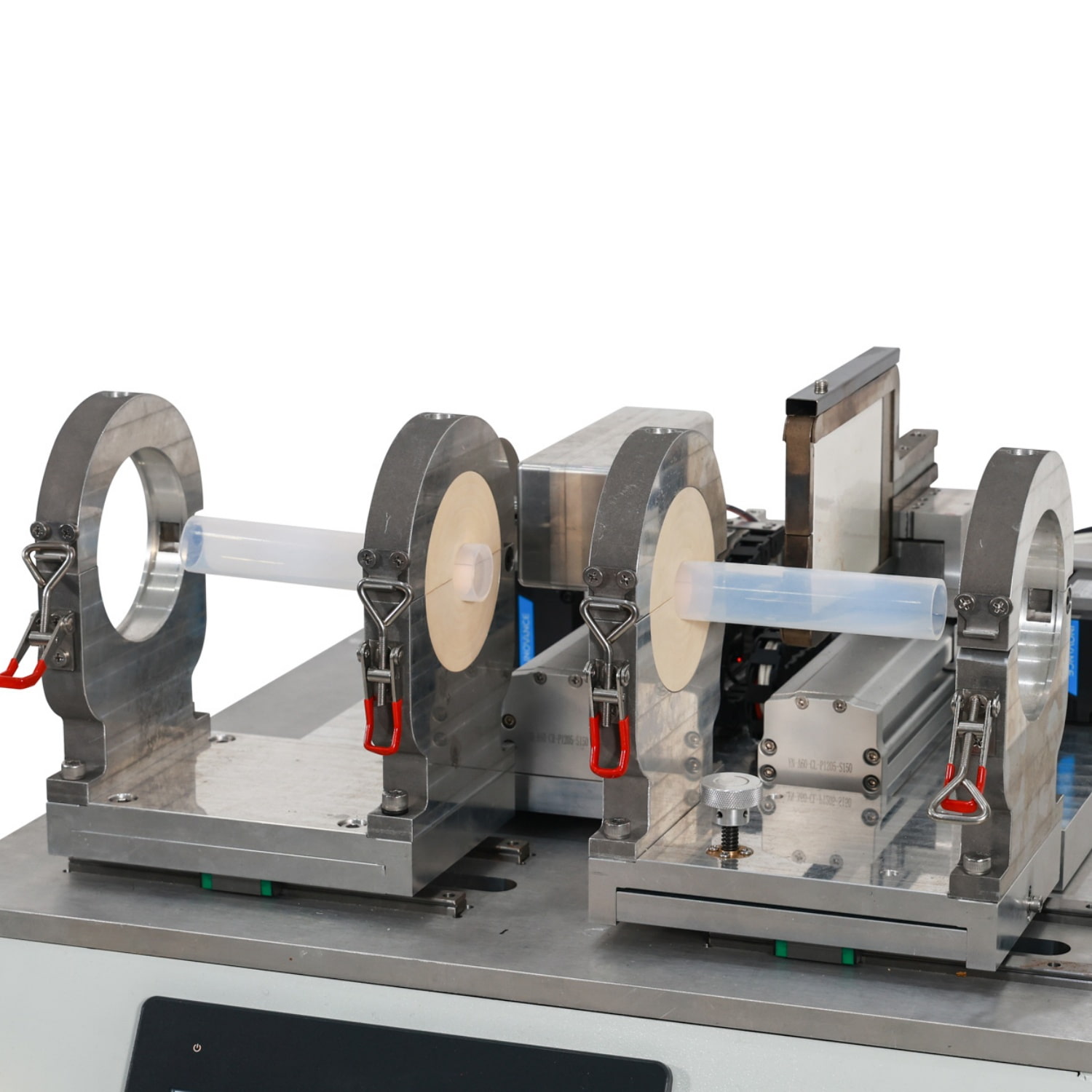

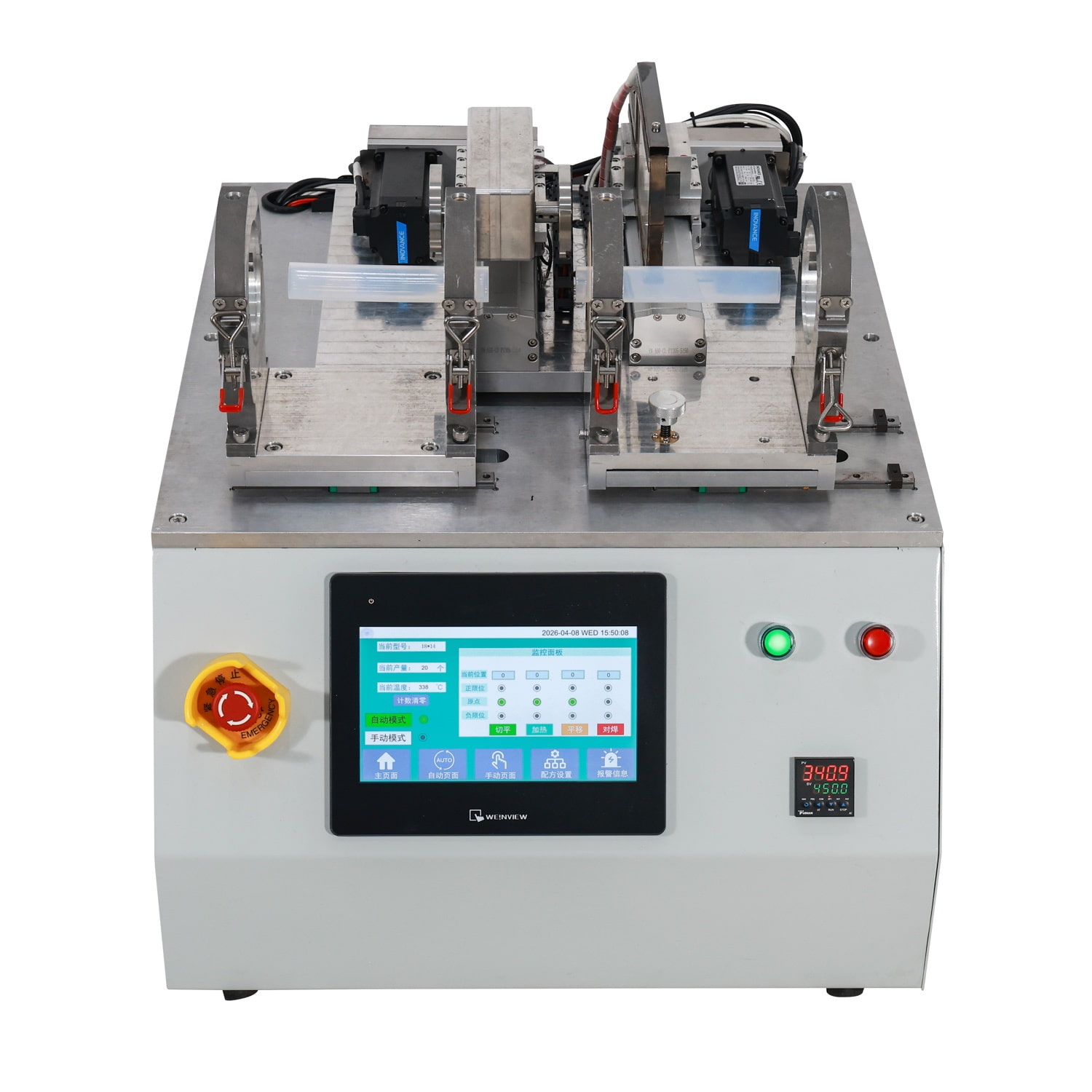

This machine is a precision thermal fusion butt welding system specifically designed for the connection of high-purity and corrosion-resistant PFA (Perfluoroalkoxy alkane) piping systems.
The system is controlled by a PLC program and integrates high-precision temperature control, servo-driven actuation, and a human-machine interface (HMI). It enables fully automated welding processes, ensuring high weld strength and zero extractables.
The equipment fully meets the stringent requirements for ultra-high purity fluid delivery systems in industries such as semiconductor manufacturing, photovoltaics, biopharmaceuticals, and specialty chemicals.
-------------------------------
Technical Specifications and Parameters
| Item | Specification |
|---|---|
| Applicable Materials | PFA, FEP, PVDF, PP |
| Welding Pipe Diameter Range | Ø6.35 – Ø63 mm (Outer Diameter) |
| Power Supply | 220V, 50/60 Hz ±10% |
| Heating Temperature Range | Ambient – 600°C |
| Temperature Control Accuracy | ±1°C |
| Heating Plate Material | Far-Infrared Ceramic |
| Drive System | Servo Motor + Ball Screw |
| Control System | Industrial PLC + Color Touchscreen (HMI) |
| Program Storage Capacity | Up to 100 Programs |
| Machine Dimensions (L × W × H) | 740 mm × 670 mm × 670 mm |
| Net Weight | Approx. 90 kg |
High-Precision Control:
Utilizes PID closed-loop temperature control with heating stability within ±1°C. A servo motor provides precise torque control, enabling accurate adjustment of joint pressure.
Fully Automated Welding:
Built-in welding programs for multiple pipe diameters. One-button operation, the system automatically completes the entire process, including facing, heating, joining, and cooling.
User-Friendly Operation:

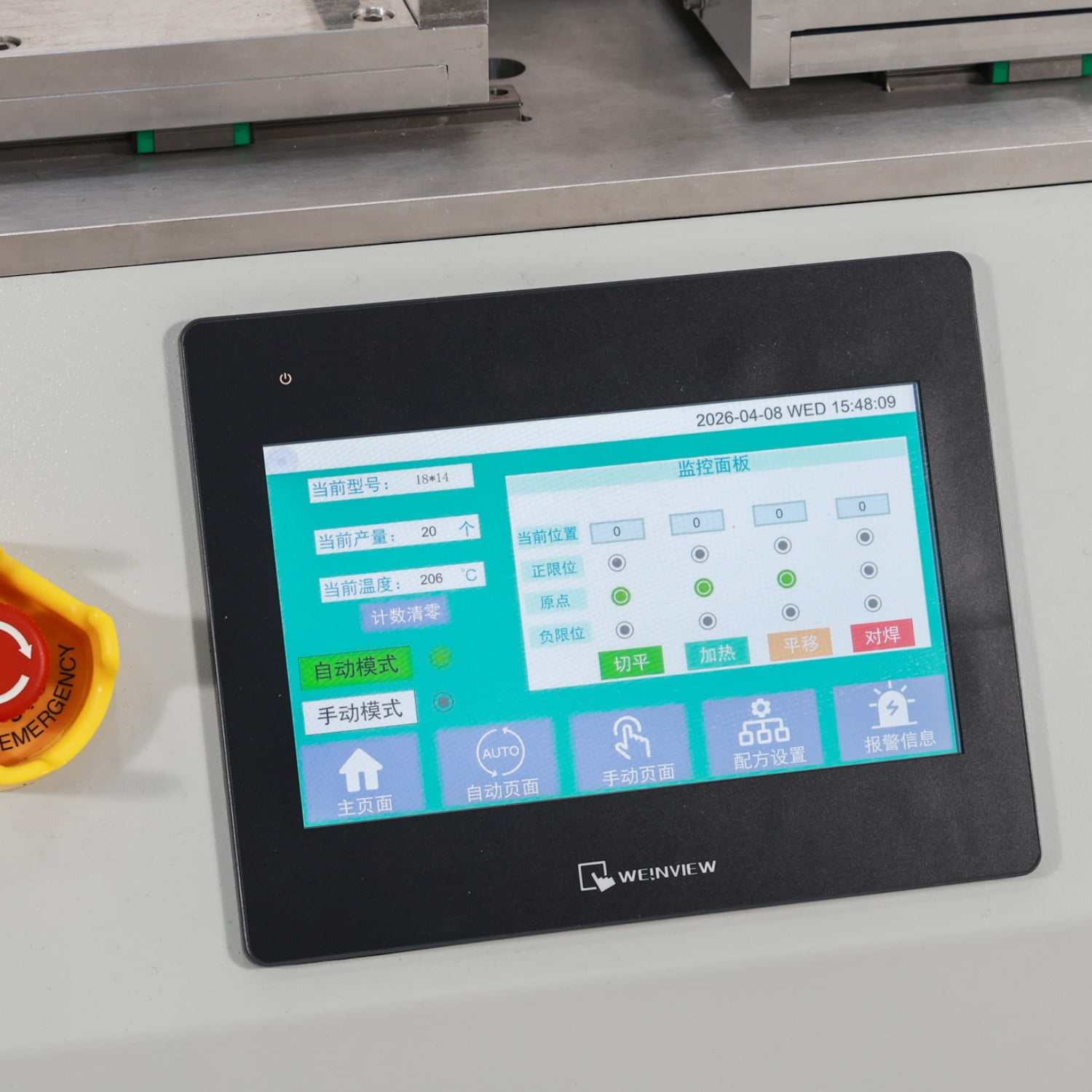

Equipped with a color touchscreen HMI, allowing intuitive parameter setting, storage, and recall. Real-time welding parameters are clearly displayed.
High-Quality Welds:
Uniform and stable thermal field enables molecular-level diffusion bonding, achieving weld strength ≥90% of the base material.
Safe and Reliable:
Incorporates multiple safety protections (over-temperature, emergency stop, short circuit protection), with a robust structure ensuring safe operation.
Main Applications
Semiconductor Manufacturing: Ultra-pure water (UPW) and high-purity chemical delivery systems (e.g., CMP slurry, etchants)
Biopharmaceutical Industry: Aseptic process piping and WFI (Water for Injection) systems
Specialty Chemicals: Corrosive media transfer pipelines
Laboratory Systems: High-purity fluid handling systems
