PTFE Wafer Cleaning Tank with Carrier

Custom PTFE wafer cleaning tank and carrier for semiconductor wafer cleaning applications.
  • PTFE-SG+HL

  • NJbinglab

  • PTFE

  • Semiconductor Industry

  • Customization

  • -200℃ to +250℃

  • Strong Acid and Strong Alkali

  • Pure White

  • 1pc

  • LOGO

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

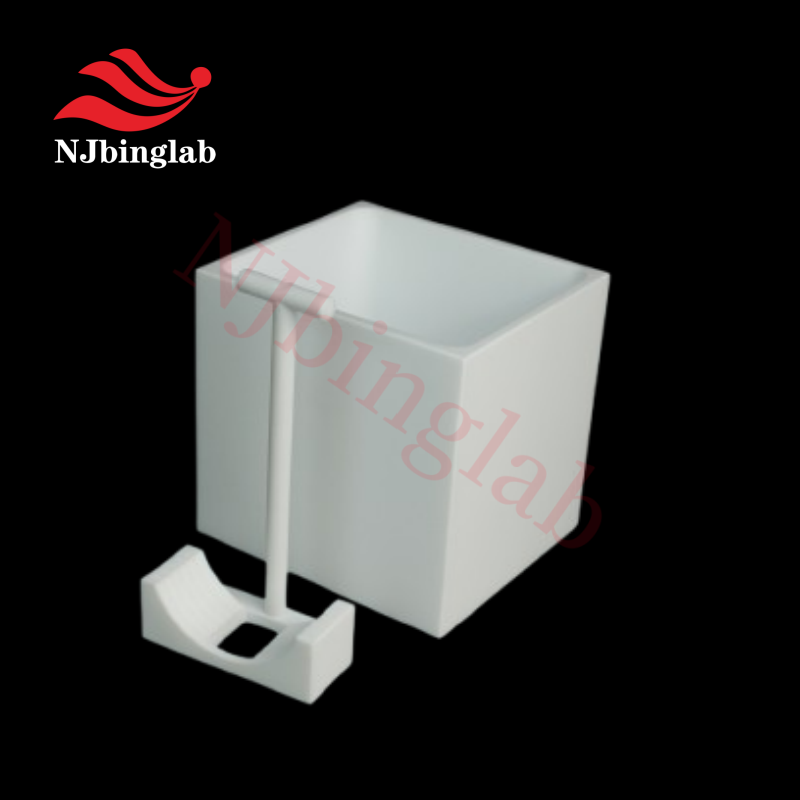

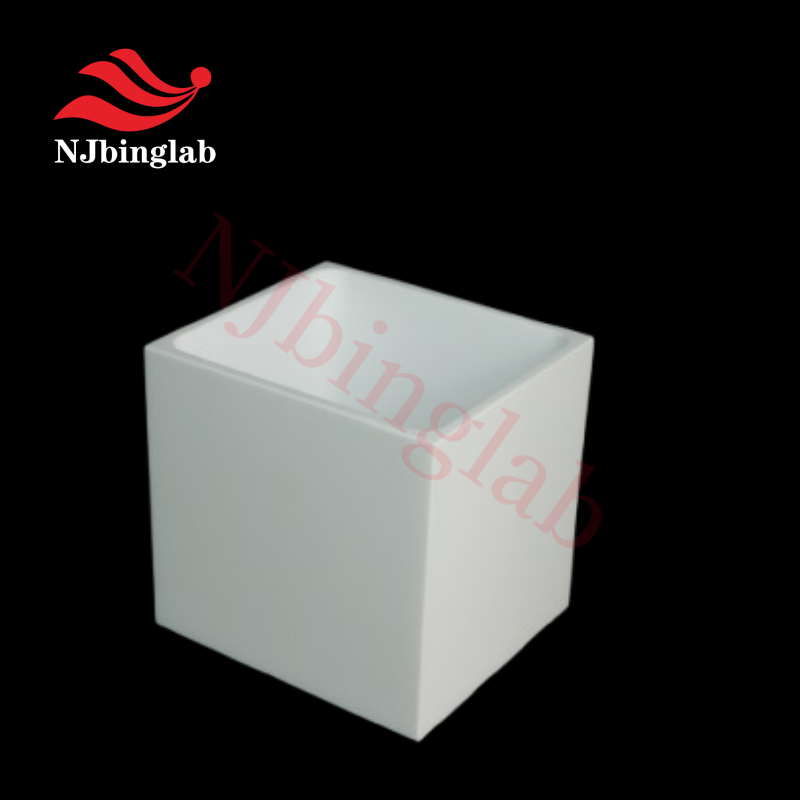

PTFE Wafer Cleaning Tank with Carrier

This PTFE wafer cleaning tank with carrier is designed for semiconductor wafer cleaning processes where ultra-high purity and excellent chemical resistance are required. Made from high-purity PTFE, the system ensures outstanding corrosion resistance, low contamination risk, and long service life in harsh chemical environments.

The integrated PTFE wafer carrier allows wafers to be securely held during acid cleaning, rinsing, or chemical treatment, improving handling efficiency and reducing the risk of wafer damage.

Key Features

  • High Purity PTFE Material – Excellent resistance to strong acids, alkalis, and aggressive chemicals used in semiconductor processing.

  • Low Contamination Risk – Non-metallic structure prevents metal ion contamination during wafer cleaning.

  • Integrated Wafer Carrier – Designed for stable wafer holding and easy transfer during cleaning processes.

  • Excellent Temperature Resistance – Suitable for high-temperature chemical cleaning applications.

  • Smooth Surface Finish – Reduces particle adhesion and ensures easy cleaning.

  • Customizable Design – Tank size, wafer capacity, and carrier structure can be customized according to wafer dimensions and process requirements.

Applications

  • Semiconductor wafer cleaning

  • Wet chemical processing

  • Acid and solvent cleaning procedures

  • Laboratory wafer preparation and research

Customization Options

  • Tank dimensions

  • Wafer carrier capacity and slot design

  • Handle structure and support base

  • Wall thickness and reinforcement design

Custom manufacturing is available to meet different wafer sizes and semiconductor process requirements.
