PTFE/PFA Wafer Carrier

NJbinglab offers fully flexible customization solutions for wafer cassettes/ holders/ carriers and baskets to meet the diverse needs of semiconductor and laboratory applications. Based on your specific wafer/silicon size, thickness, quantity, and process requirements, our team can tailor designs in various structures, slot configurations, and dimensions.

Manufactured from high-purity materials such as PFA, PTFE, PP, and other advanced polymers, our products ensure excellent chemical resistance, ultra-low contamination, and outstanding performance in harsh environments. Whether for cleaning, storage, or transportation, each component is engineered to provide stable support, precise positioning, and enhanced safety for your wafers.

From prototype to mass production, we deliver reliable, high-quality customized solutions with quick turnaround and professional technical support.

What exactly can be customized?

NJbinglab offers three material options：PFA/pTFE/PP

PFA/PTFE carriers are designed for ultra-clean and strong acid environments , where contamination control is critical.

PP wafer carrier is cost-effective and ESD-safe, suitable for most handling and cleaning processes.

PFA Material Carrier

PFA wafer cassettes are designed for ultra-clean and high-purity applications, offering exceptional chemical resistance and extremely low metal ion leaching. They are ideal for handling wafers in strong acid environments.

PTFE Material Carrier

PTFE wafer cassettes provide outstanding chemical inertness and high temperature resistance, similar to PFA. Meanwhile, PTFE material is easier to customize and has a lower cost than PFA material.

PP Material Carrier

PP wafer cassettes are widely used for standard wafer handling, storage, and wet processing due to their excellent mechanical strength and cost-effectiveness. They can be modified to be anti-static (ESD-safe), making them suitable for automated semiconductor environments.

adapts to different wafer shapes and sizes.

NJbinglab not only provides standard-sized wafer carriers, but also customizes non-standard-sized round and square wafer carriers according to customers' specific requirements in the actual wafer handlinging process.

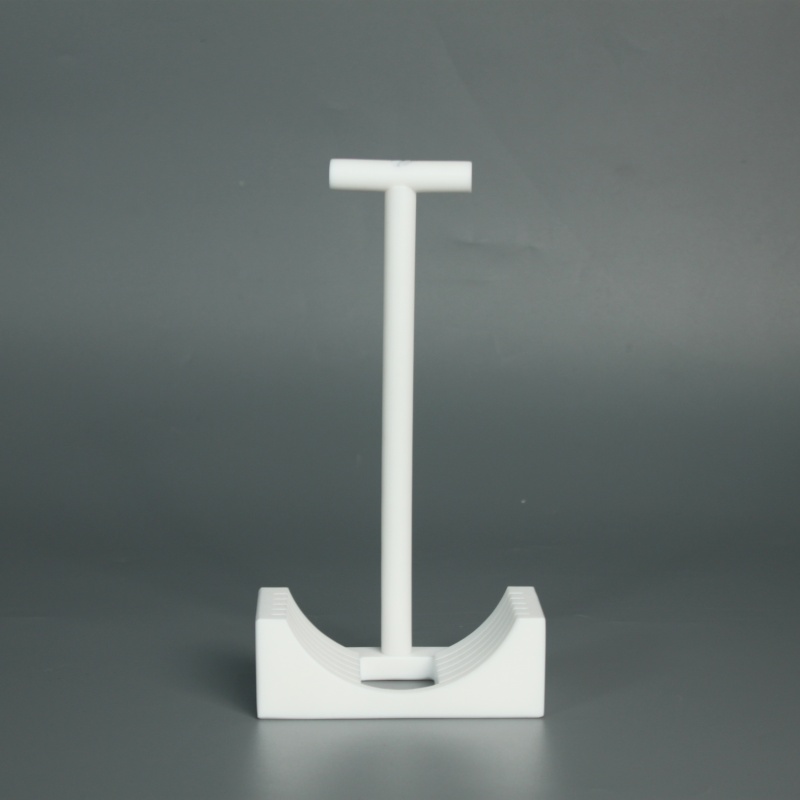

Single-handled wafer carrier

This style is suitable for carrying small-sized wafers, and its crescent-shaped design fits round wafers better,it can process up to ±5 wafers at a time.

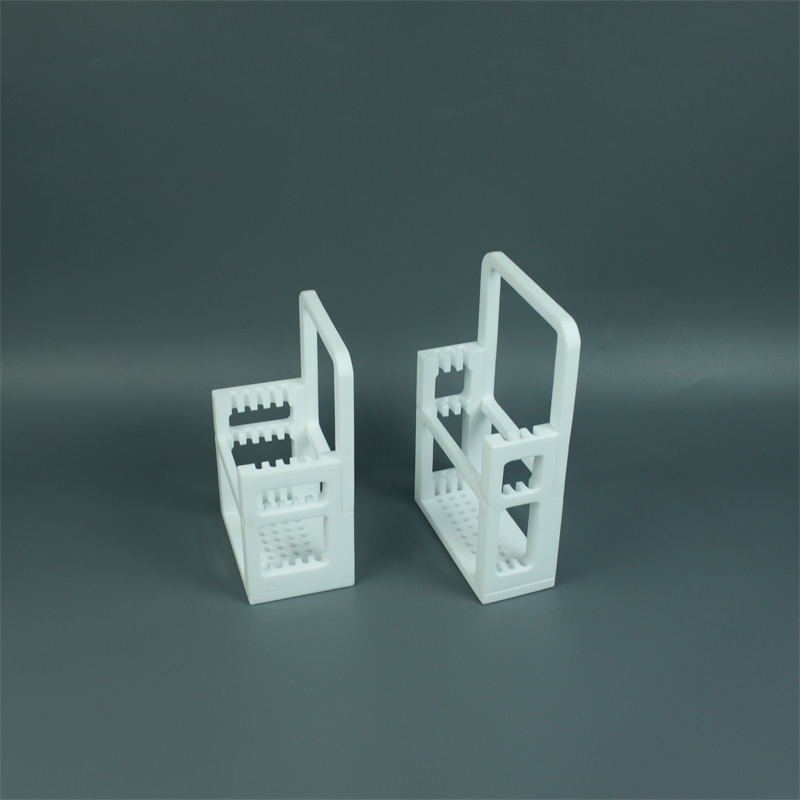

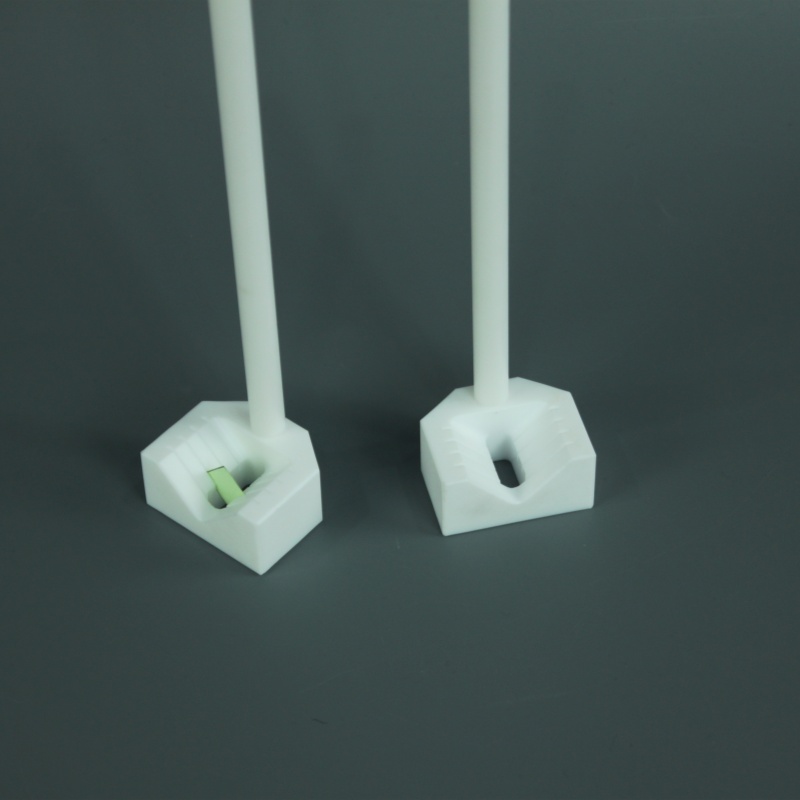

Square wafer carrier

Square wafers are easily damaged when placed in classic round wafer cassettes. To address this, NJbinglab designed cassettes perfectly suited to square sizes, ranging from 8*8mm to 25*25mm.

Photolithography mask cleaning carrier

Similar to square wafer carrier, NJbinglab has customized cleaning carriers specifically designed for 4-inch and 5-inch photomasks to better clean residual photoresist from the photomasks.

Multi-wafer And Single Wafer Carrier

Batch processing of wafers can save a lot of time, so NJbinglab has designed multi-wafer carriers for this purpose. When customers need to process a single wafer, NJbinglab has also designed wafer dippers and single-wafer carriers.

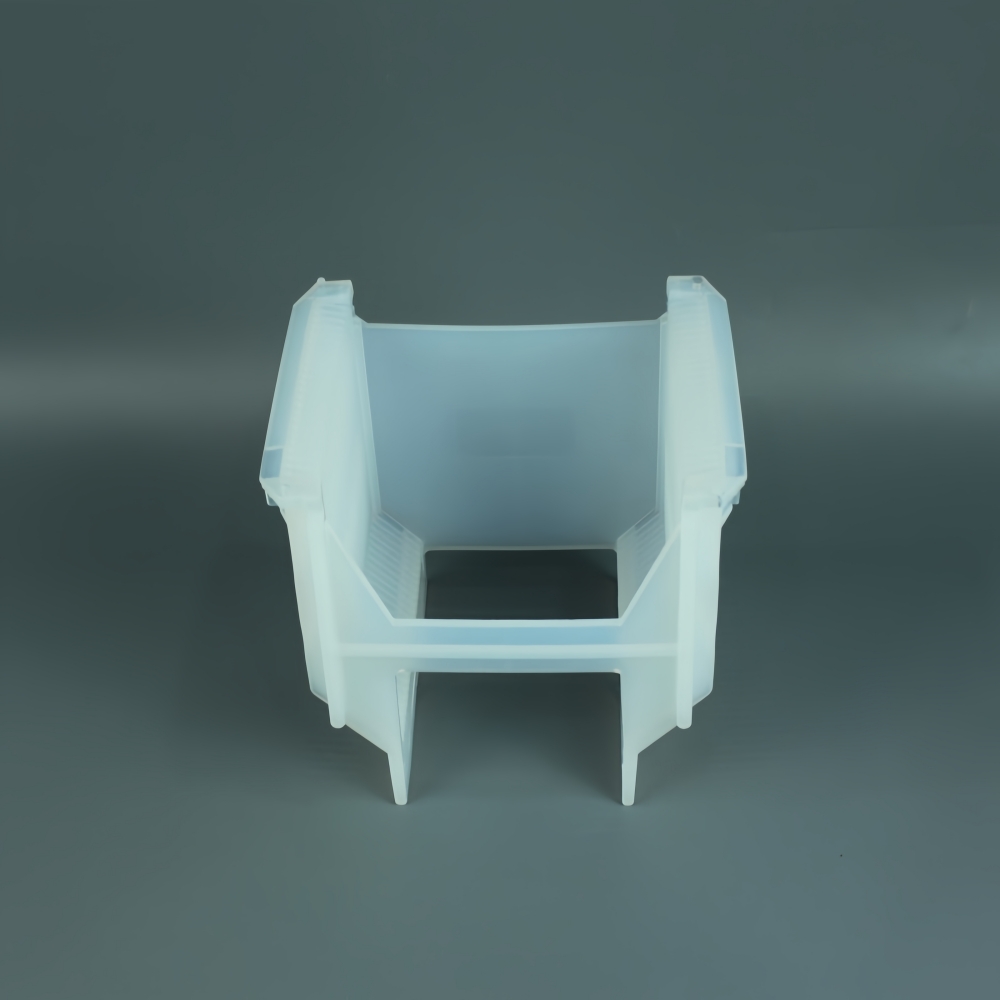

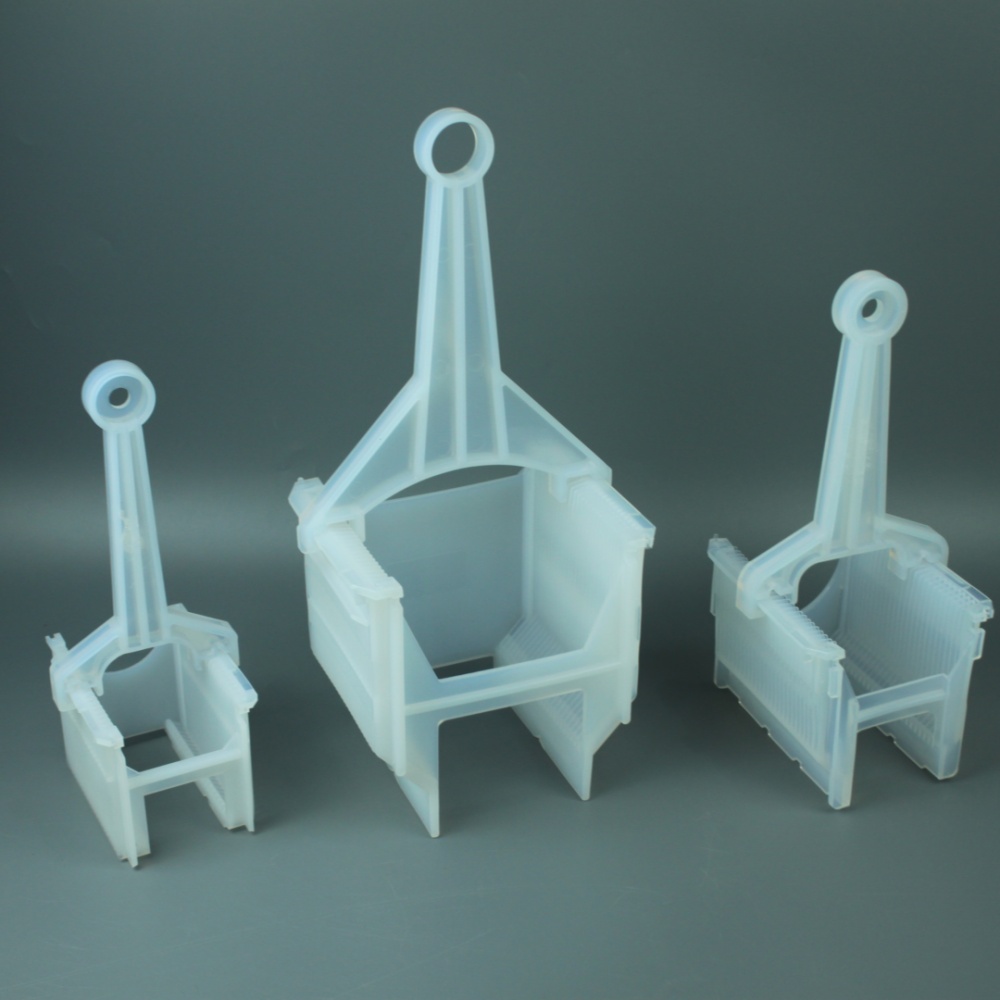

Multi-wafer Carrier

Multi-slots wafer carriers can process 5, 10, or even up to 25 wafers at a time.

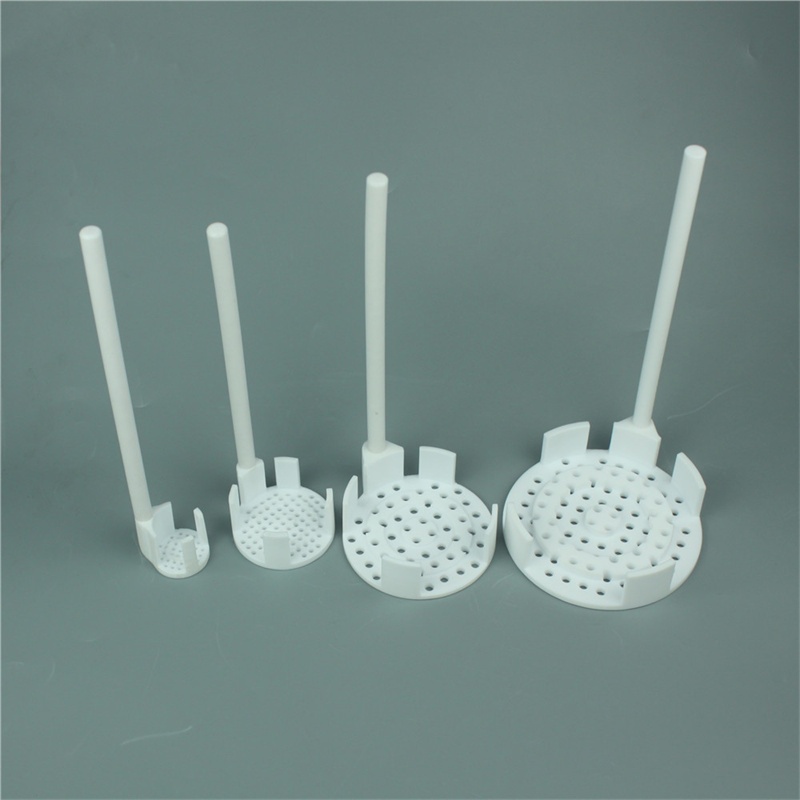

Single-wafer Carrier

It can accommodate wafer sizes ranging from 1 inch to 8 inches, offering flexible customization options.

PFA/PTFE Wafer Dipper

NJbinglab's dippers safely secure and hold one wafer or one square plate in place for no-hassle dipping.

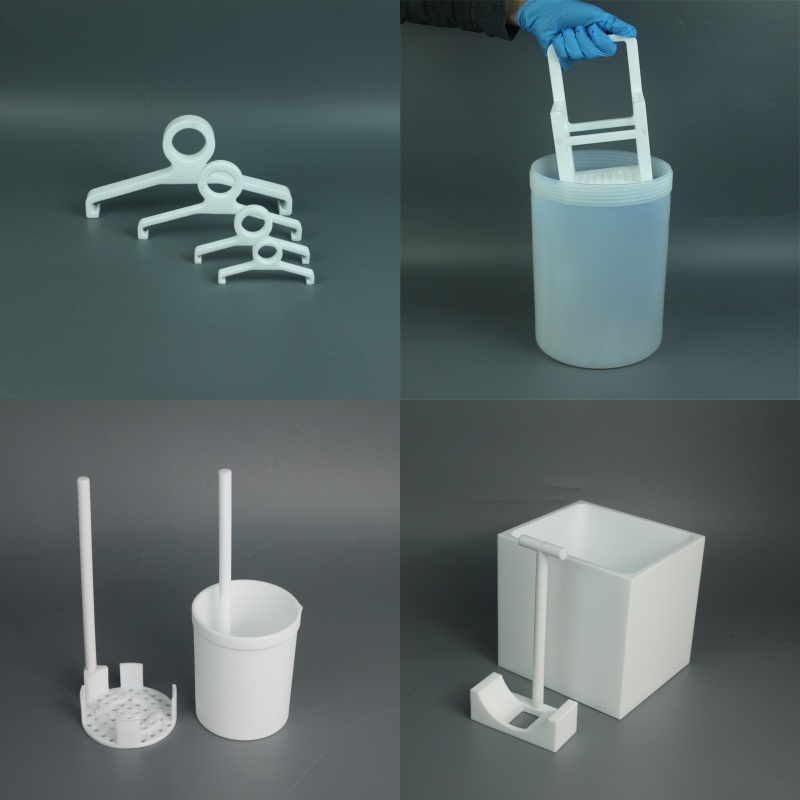

Soaking/dipping Container,handles can be applied together

In addition to producing wafer carriers, NJbinglab also customizes matching soaking containers such as cleaning tanks and beakers; we can also customize suitable sliding handles for multi-slots carriers.

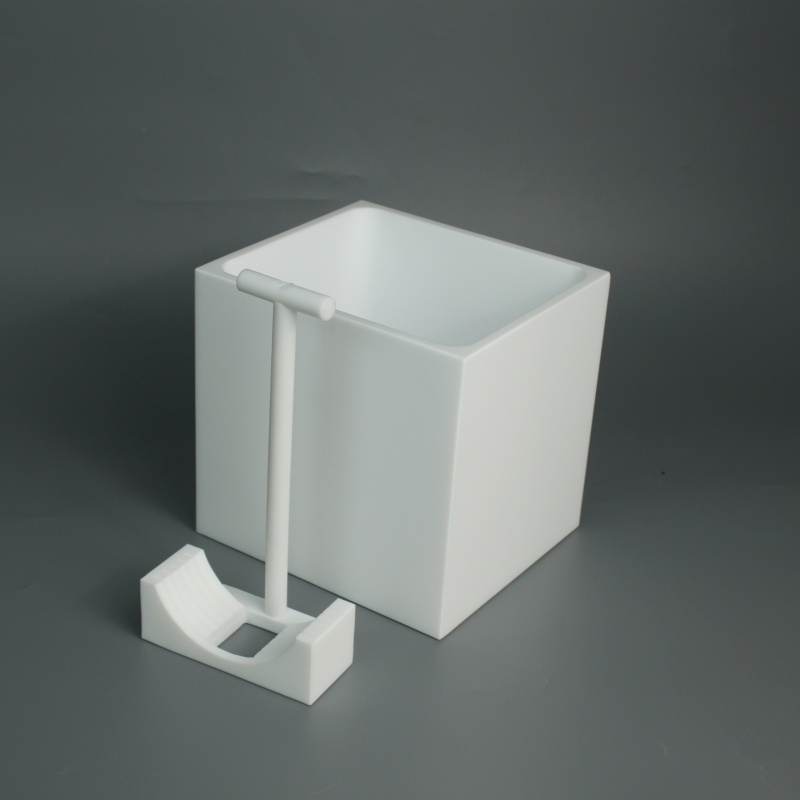

Cleaning tank for soaking

The size of the tank can be flexibly customized according to the carrier to be immersed.

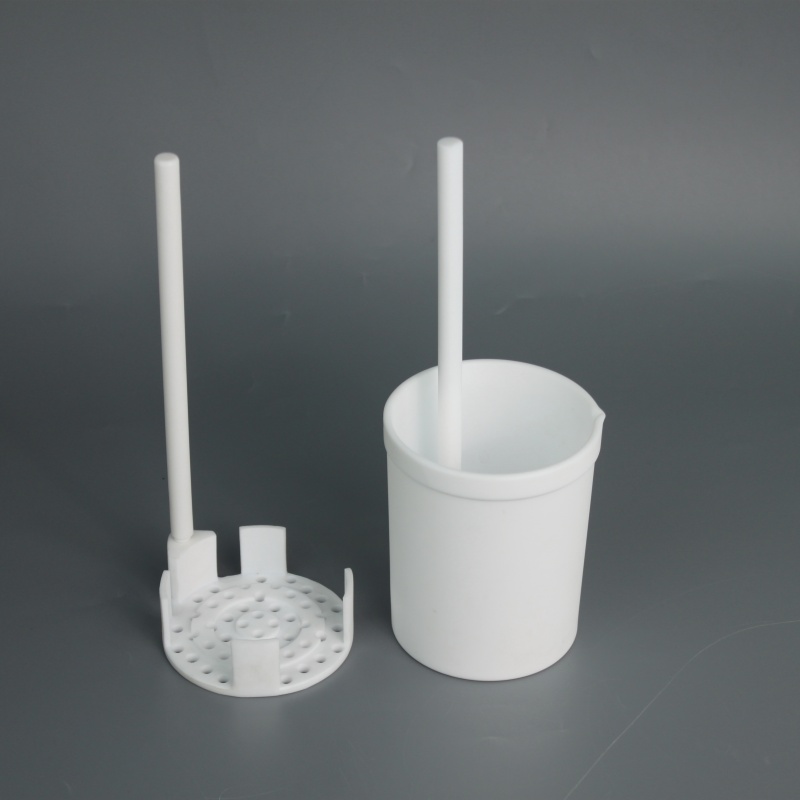

PTFE/PFA Beaker

PTFE/PFA Beaker can be the soaking container for single wafer carrier

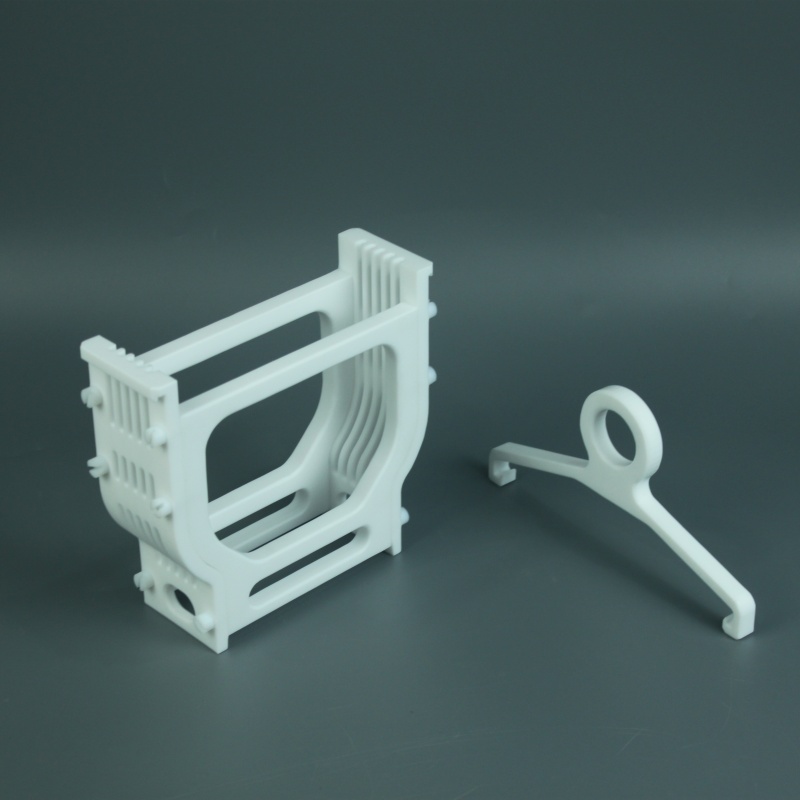

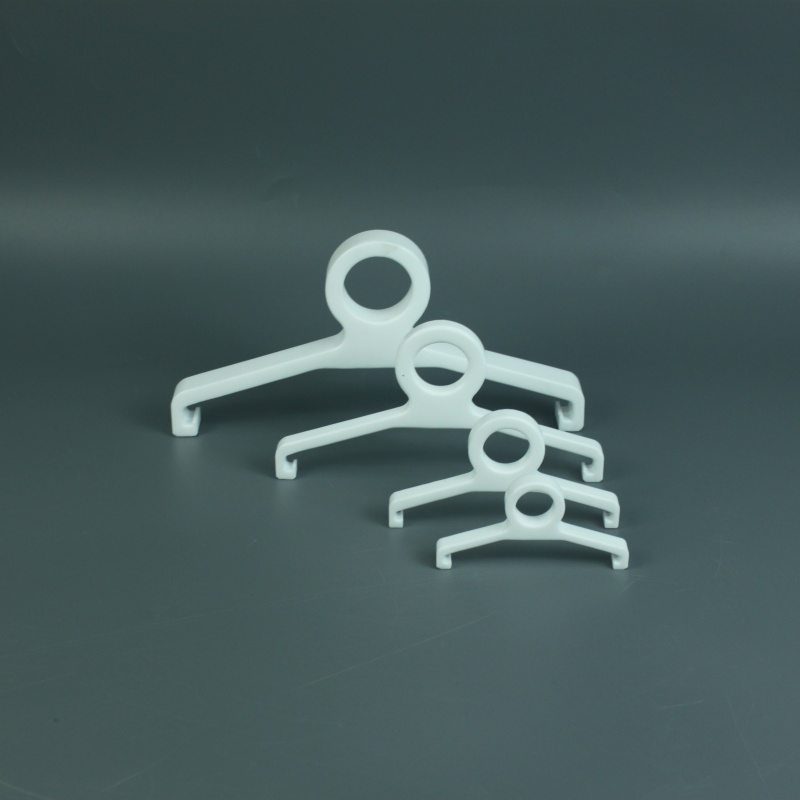

PTFE/PFA Handles

To match multi-slots wafer carrier, for transfering carrier easily.
