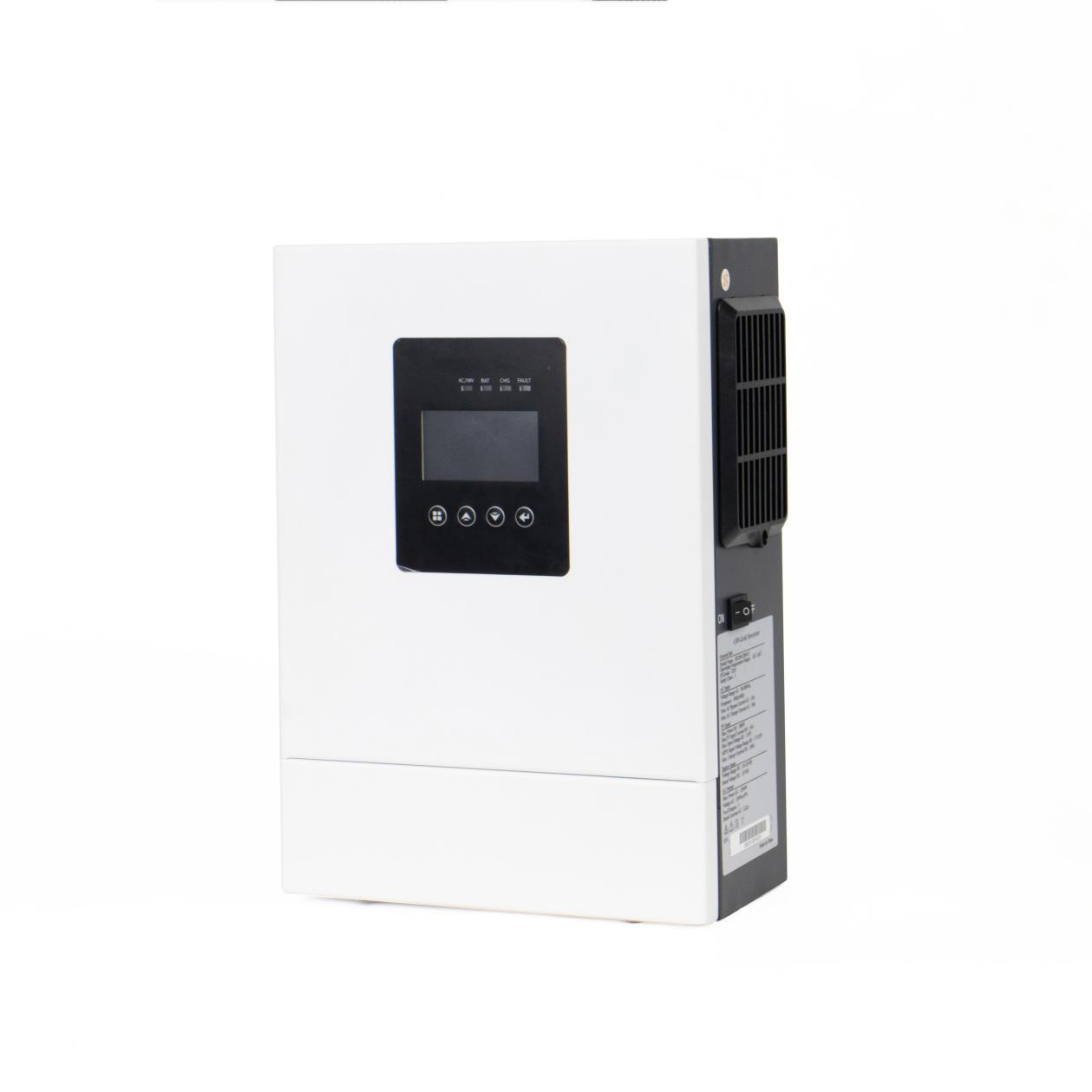

The 2500-0 is a high-efficiency and reliable off-grid solar inverter integrating PV charging, utility input, and battery energy management. It allows PV power, grid power, and battery energy to work together to supply loads, ensuring stable power availability.
With a built-in high-performance MPPT solar controller, the inverter supports direct connection to solar panels without an additional external MPPT controller, simplifying installation and reducing system costs.
Featuring high-frequency inverter technology, the 2500-0 offers a lightweight design, compact size, high power density, and excellent energy utilization, making it suitable for residential energy storage, outdoor power supply, and remote off-grid applications.
Brand :
BingCoreKey feature
1. PV, utility power, and battery can simultaneously supply power to loads
2. Built-in MPPT controller supports direct PV panel connection without an additional external MPPT, simplifying installation and reducing system cost
3. Intelligent temperature-controlled fan with low-noise operation under light loads; wide temperature design for harsh environments
4. High-frequency design featuring lightweight structure, compact size, high power density, and improved conversion efficiency
5. Multiple protection functions ensure enhanced reliability and operational safety
| Parameter | Value |
|---|---|
| Max Output Power | 1200 W |
| Rated Output Voltage | 240 Vac ±5% (Single Phase) |
| Max Output Current | 5.45 A |
| Output Frequency | 50 / 60 Hz |
| Output Waveform | Pure Sine Wave |
| Output Topology | L + N + PE |
