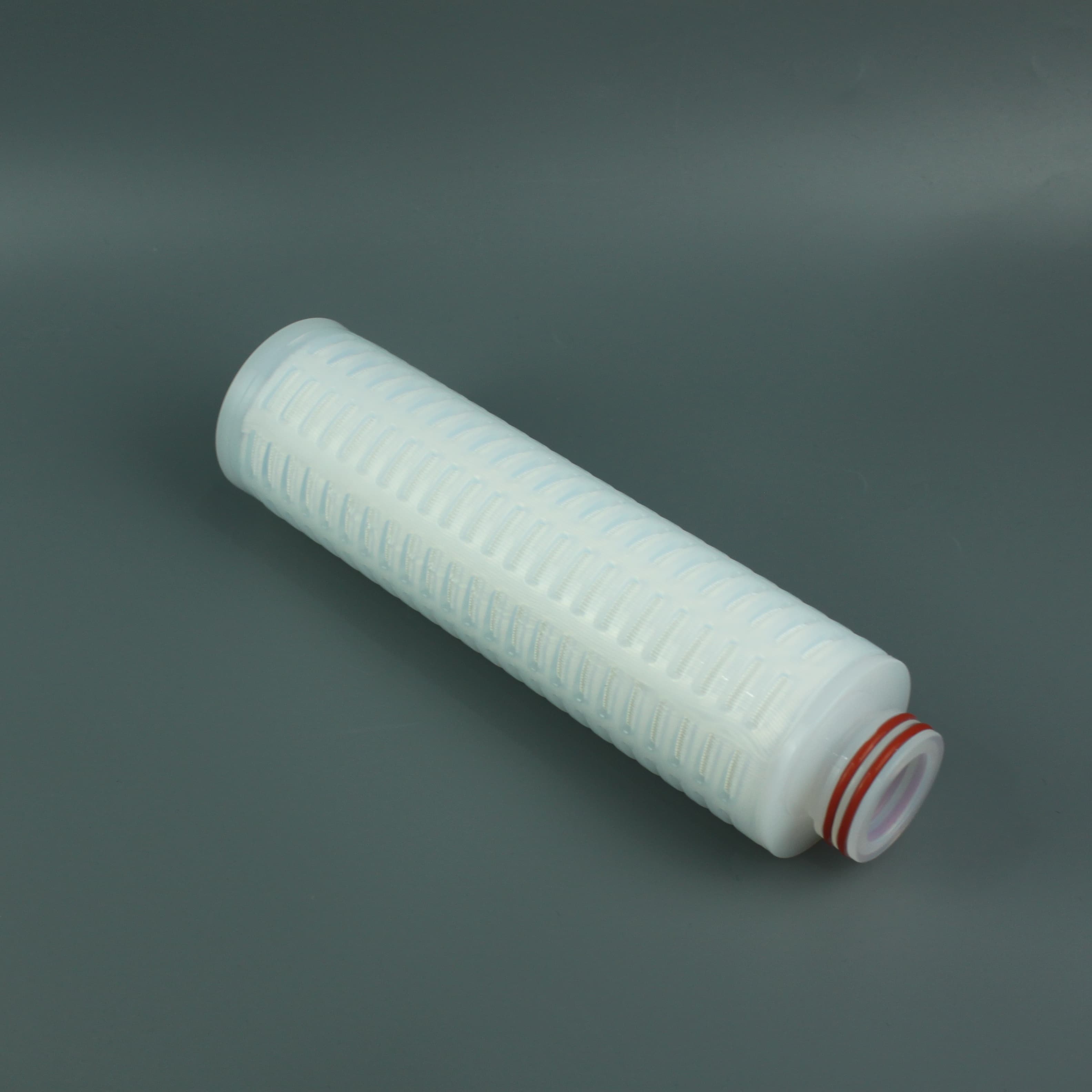

Name: PFA Pleated Filter Cartridge
Availability: InStock

PFA Pleated Filter Cartridge

PFA pleated filter cartridge is constructed entirely from fluoropolymer materials, featuring a PTFE membrane combined with a PFA support and flow structure.It is designed for ultra-high purity and aggressive chemical filtration applications.

With excellent chemical resistance, the cartridge is suitable for filtration of strong acids, alkalis, and a wide range of organic solvents.It provides reliable performance in ultra-clean and highly corrosive process environments.

Brand :
NJbinglab
Item No :
PFA-LX-Z
material :
PFA+PTFE

Inquiry Now

Features

All-fluoropolymer construction (PTFE membrane + PFA support structure).
Excellent chemical compatibility with strong acids, bases, and organic solvents.
Ultra-low extractables and ionic contamination.
High flow rate with low pressure drop.
Outstanding chemical resistance and durability.
High temperature and pressure resistance.
100% integrity tested before release.

Specifications

Parameter	Specification
Filtration ratings (µm)	0.01 / 0.02 / 0.05 / 0.1 / 0.22 / 0.45 / 1 / 3 / 5
Outer diameter	69 mm
Maximum operating temperature	185°C
Maximum differential pressure	6.9 bar @ 50°C
Maximum reverse differential pressure	0.35 MPa (3.5 bar / 50 psid) @ 25°C
Effective filtration area (10 inch)	≥ 1.12 m²
